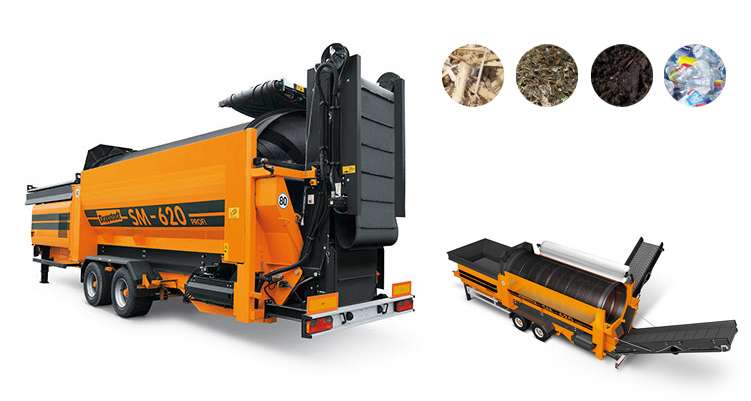

Doppstadt SM620

The rotating trommel can screen the most difficult materials making the best possible use of the load-sensing material feed and the large screening surface.

The hydraulically controlled discharge conveyors are ready to go within less than five minutes. A rotating, hydraulically controlled brush cleans the trommel automatically. The machine level is adjustable for stability and a good throughput.

If the machine must be moved, a slip-on coupling for the drawbar is available.

Our SM 620 works with a trommel with a 2 m diameter and a length of 5,5 m. The trommel wall thickness is 6 – 12 mm. Different meshes are available e. g. square holes, staggered squares and round holes.



Main Advantages

  • load-sensing material feed to the trommel
  • swing-out drive unit for easy maintenace
  • quick and easy trommel change
  • many available options to meet various requirements
  • hydraulically controlled cleaning brush
  • can be combined with other Doppstadt products
  • one-man operation (remote control of all the functions)

Machine Specs

Make Model Input Output
Doppstadt SM620 Up to 300mm Up to 100tph
Material
Wood, Compost, Soil, Waste
